Product details

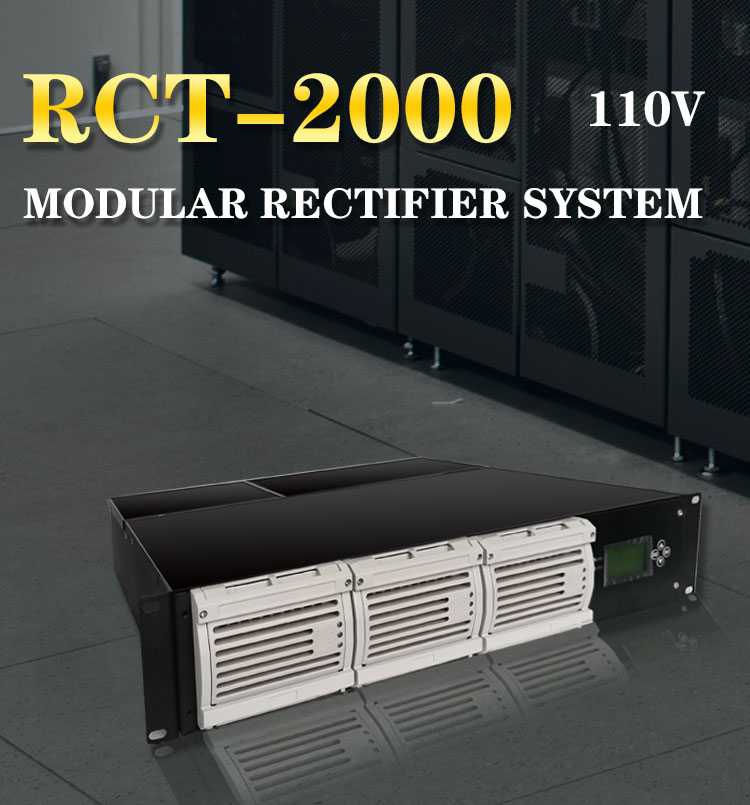

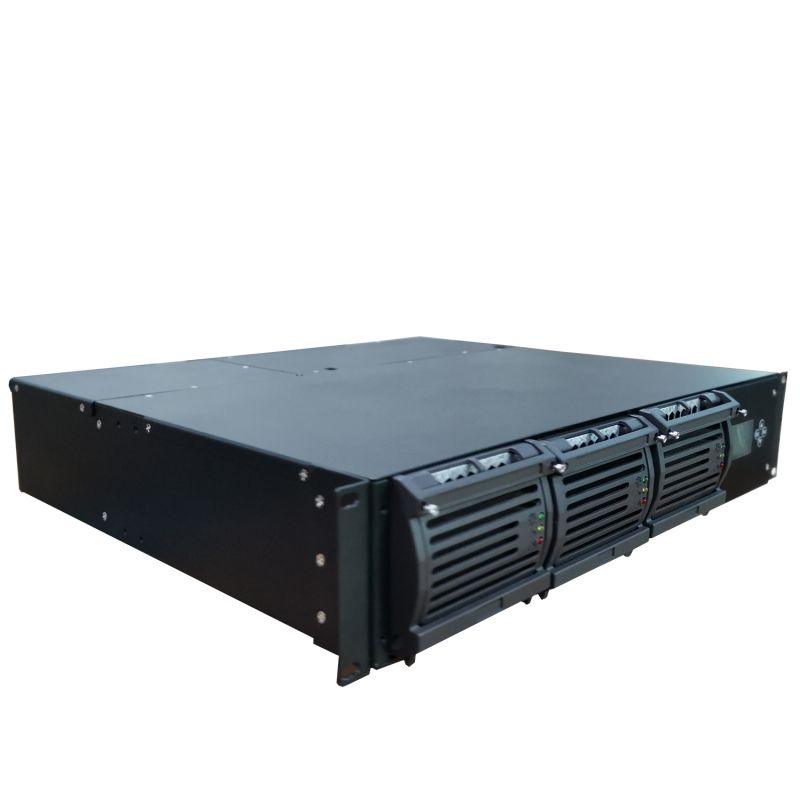

Modular Rack Mount Rectifier System 110VDC 220VAC switching power supply
RCT-2000 modular rectifier system is widely deployed in the telecom/industrial field. It provide telecom power technology to modulate voltage for DC load and maintain back-up batteries.It treble hot swap rectifier modules build a N+1 redundancy, have high fault tolerant reliablity for important load. To adaptable in different external power system, the powerful monitor have 45 alarm option, support RS485/ SNMP remote operation.
FEATURE:
- Wide operating range of AC input voltage: 90~290Vac;
- ucurrent/voltage switching tech with high efficiency ≥92%;
- uPerfect battery management, battery temperature;
- uMultiple communication ports, easy for networking and remote
- ModbusRS485/TCP/IP/YDN23 (YD/T 1363) protocol;
- uTemperature compensation, LVLD and LVBD protection;
- uAutomatic battery test function, cycle test, quick test;
- uSupports power system &module sleep, efficiency mixing, energy saving;
- uSupport real-time detection of the operating status of the power system;
- uSupport alarm real-time detection and reporting;
- uHot-swap able;
- uInput over/under voltage protection;
- uOutput over voltage protection;
- uOutput over current protection;
- uOutput short circuit protection;
- uAuto current sharing, parallel operation;
Company profile
| RCT2000 Series Rectifier System (110Vdc) | |||||||
| 1. Specification | |||||||
| 1.Widely operating range of AC input voltage: 90~290Vac 2.Compact 19’ inch rackmount shelf 3.Real-time detection of operating status, sound-light alarm 4.Perfect battery management, accessory battery temperature detector 5.20 amp output per module, 60 amp system capacity max for 2U （Whole system 180 amp max) | |||||||
| Model | BVT302S110020D2 | BVT302S110060D2 | BVT302S110100D2 | BVT302S110140D2 | |||
| Phase | Single Phase | Single Phase/Three Phase | |||||
| Module Quantities | 1 | 3 | 5 | 7 | |||
| AC Input | |||||||
| Efficiency | 92.30% | ||||||
| Power Capacity(Max) | 2500W | 7500W | 12.5KW | 17.5KW | |||
| AC Input voltage | 220Vac | ||||||
| Input voltage range | 90~290Vac(derate≤176Vac) | ||||||
| Power factor | >0.99 | ||||||
| Frequency Range | 45~66Hz | ||||||
| THDi | ＜5%@ full load ＜10% @half load Rated input & OutputVoltage | ||||||
| DC output | |||||||
| Output Voltage | 110Vdc | ||||||
| Output Current | 20A | 60A | 100A | 140A | |||
| Output Current Max | 22A | 66A | 110A | 154A | |||
| Equ- Voltage | 126.5V（99~143Vdc adjustable） | ||||||
| Float Voltage | 121V（99~143Vdc adjustable） | ||||||
| Output Ripple Voltage | ≤200mV(0~20mHz) | ||||||
| Leakage Current | ≤10mA | ||||||
| Regulation | Line: 1%, Load: 2% | ||||||
| Current Sharing | ≤±5% | ||||||
| Ripple voltage | ≤200mV<0-20mHz> | ||||||
| Load Breaker | 3*Terminals(adjustable) | ||||||
| Battery Breaker | 1*battery terminal(adjustable) | ||||||
| BLVD | Yes | ||||||
| Shunt | Yes | ||||||
| Monitor | |||||||
| DO | 6 | ||||||
| DI | 6 | ||||||

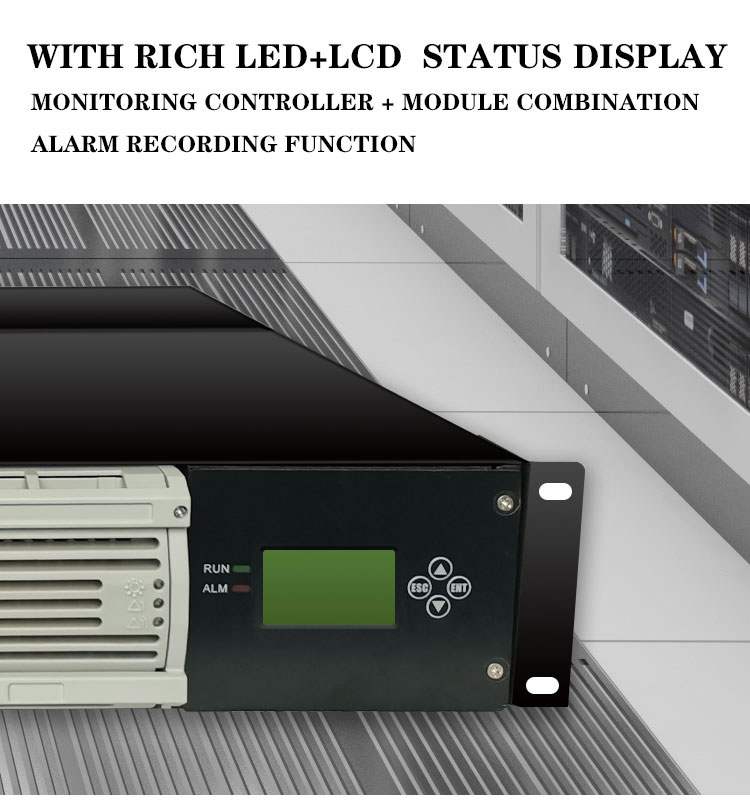

| LCD display | voltage,bat status, total current, load current, active alarm | ||||||
| Warning Remind | Sound and light | ||||||
| Optional | Leakage detection | ||||||
| Working Environment | |||||||
| Dielectric strength | 2000Vac/10mA/60s | ||||||
| Humiditty | 5%~95%, no moisture condensation | ||||||
| Work temperature | -40℃~55℃ | ||||||
| Storage temperature | -40℃~70℃ | ||||||
| Noise(1m) | <55dB | ||||||
| Size(mm) | 482*320*88(2U) | 482*320*176(4U) | |||||
| Communitcation | RS485/SNMP remote | ||||||
